TRANSFER PRINT

wyrażenie

___ TRANSFER PRINT (high temperature transfer print)

TRANSFER PRINT
Technological advantages	Technological limitations	Phases of the technological process
large decoration surface possibility of personalization Dishwasher-resistant print	the minimum thickness of the line is 0.2 mm, of the reverse - 0.4 mm the minimum size of the text is 7 points, the reverse – 10 points.	preparing the project for printing the process of printing on paper manual transfer onto the product the firing process

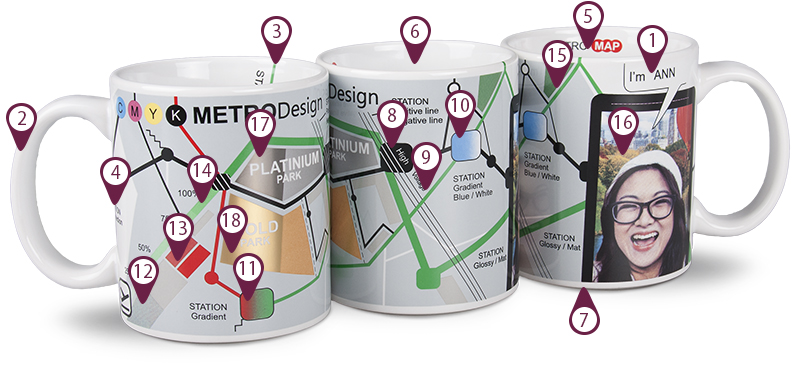

Additional decorations available

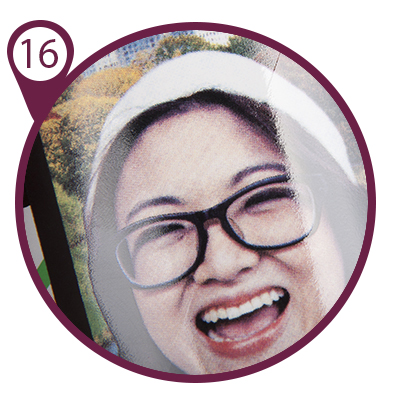

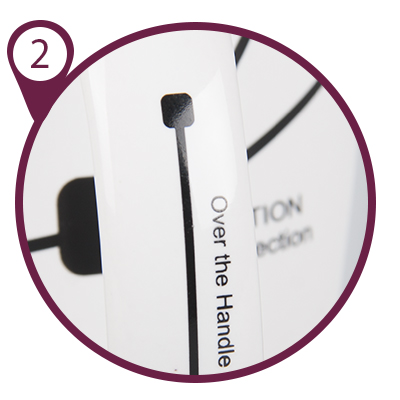

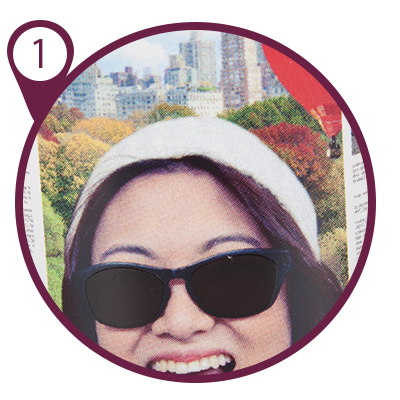

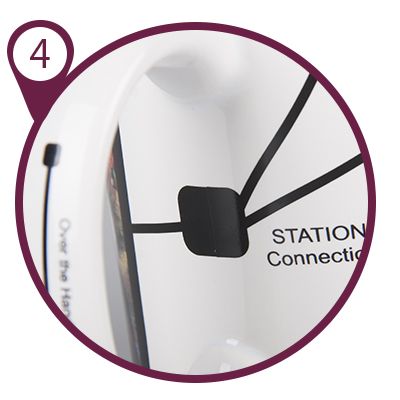

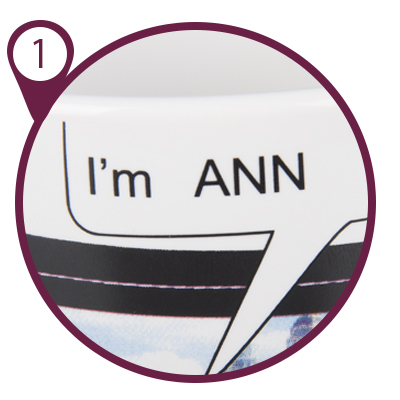

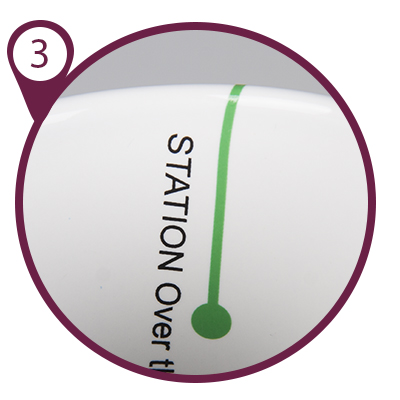

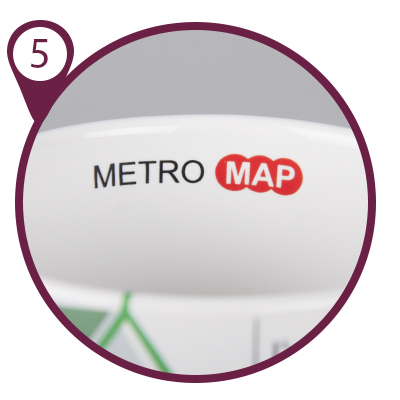

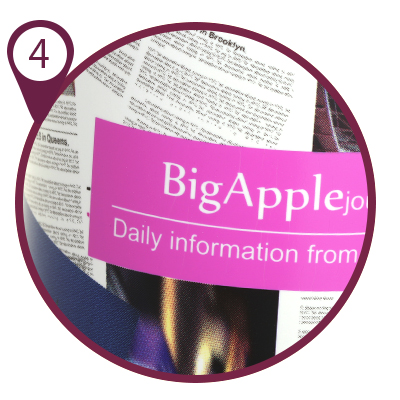

Personalization	Print on the handle	Print over the rim	Print passing under the handle

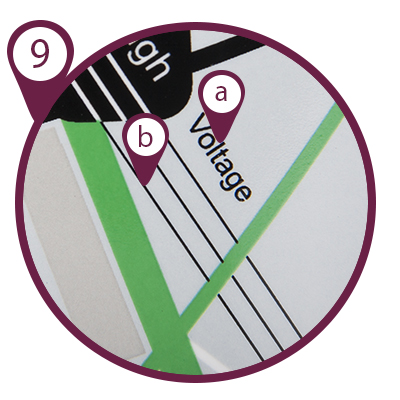

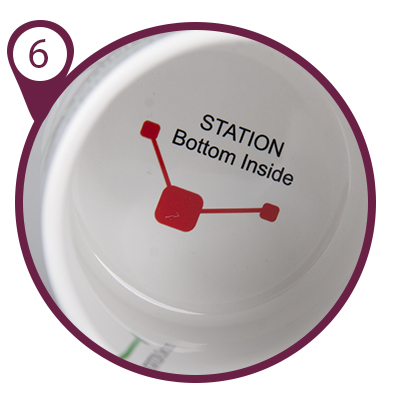

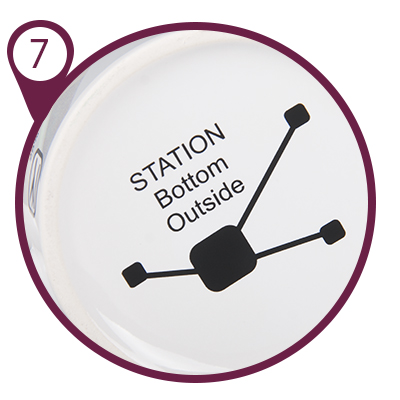

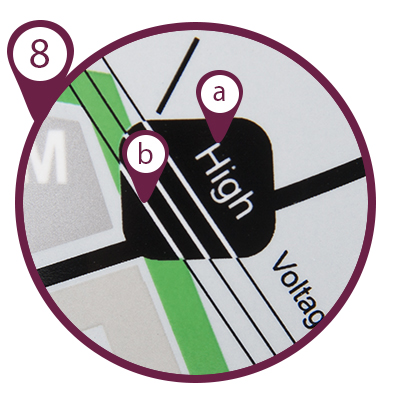

Print on the inside	Print on the bottom inside	Print on the bottom outside	Reverse printing minimum: a. line thickness: 0,4 mm b. font: Arial, 10 points

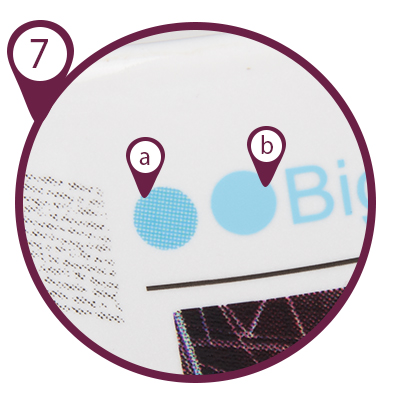

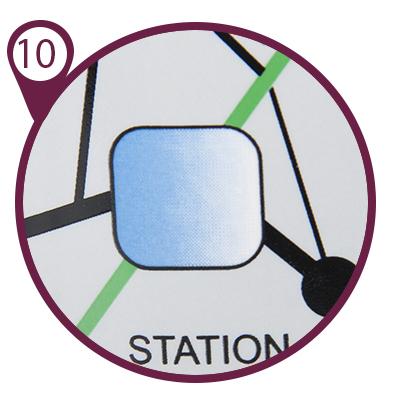

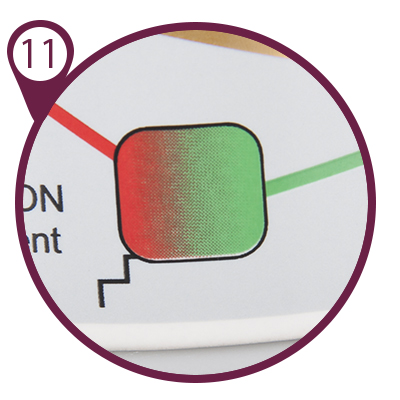

Standard printing minimum: a. line thickness: 0,2 mm b. font: Arial, 7 points	Gradient example: blue and white	Gradient example: red-green	Black printing color comparison: a. CMYK b. Pantone

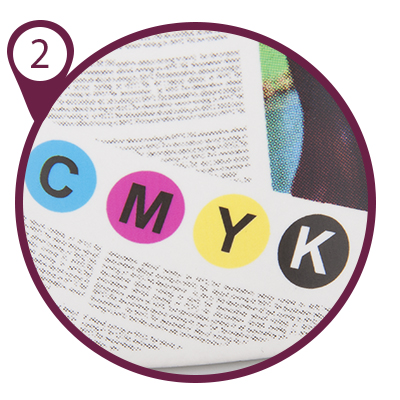

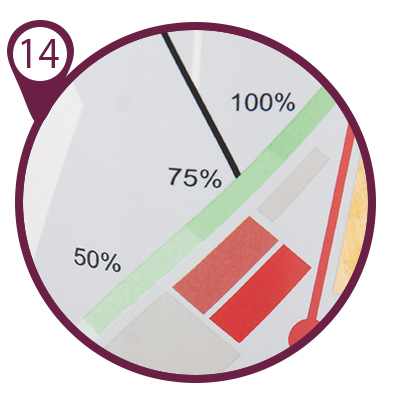

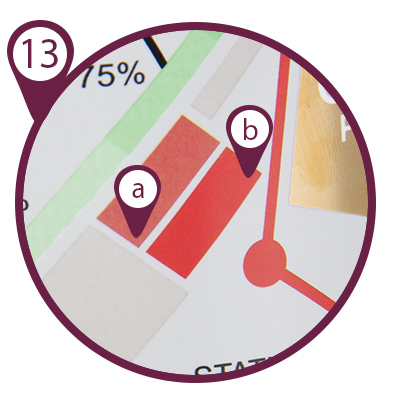

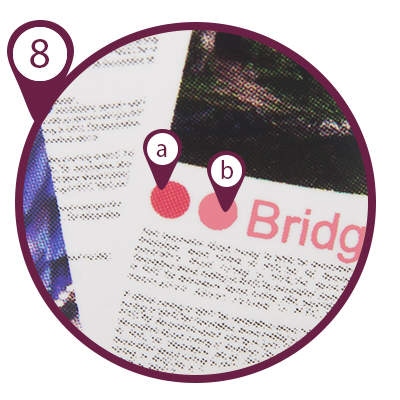

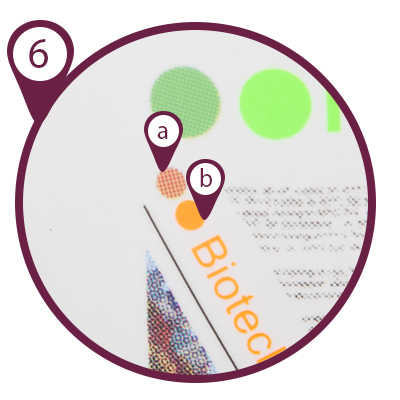

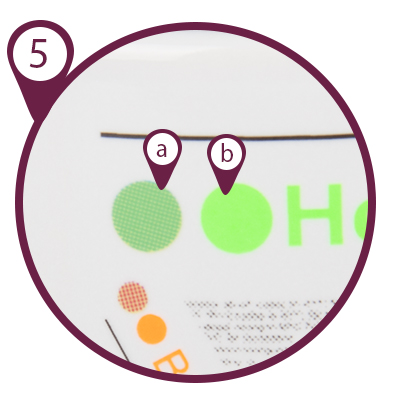

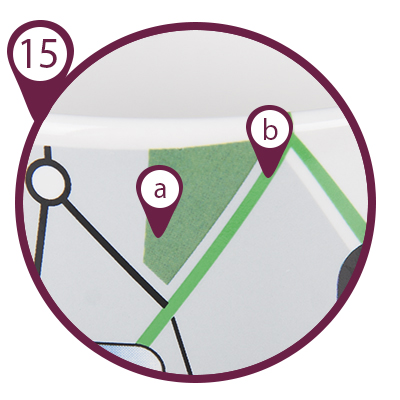

Red printing color comparison: a. CMYK b. Pantone	Rastering example: green line with percentage color saturation	Green printing color comparison: a. CMYK b. Pantone	CMYK print

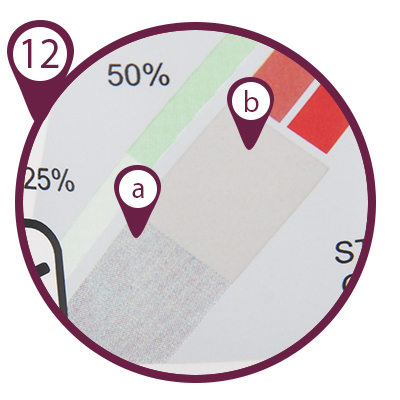

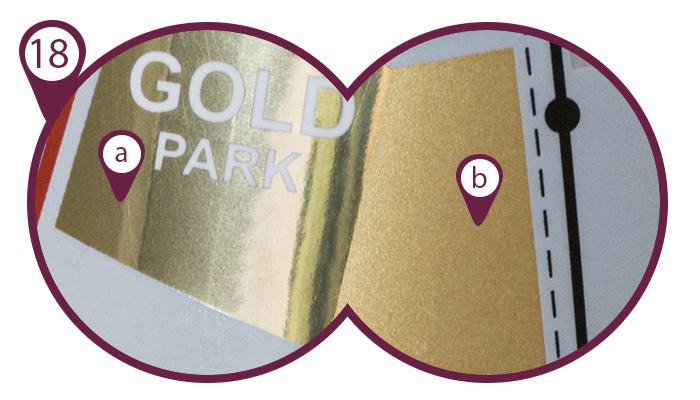

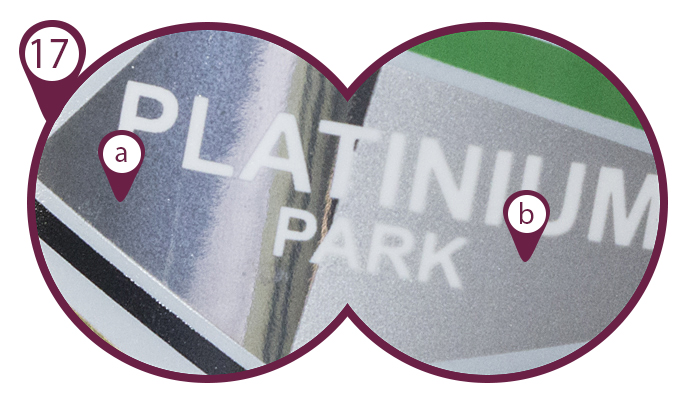

Print comparison: a. silver b. silver imitation		Print comparison: a. gold b. gold imitation


Chalkboard print	Matt transfer printing

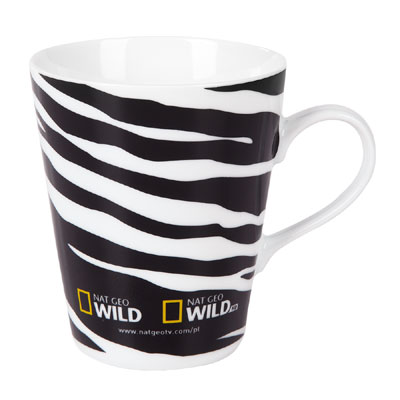

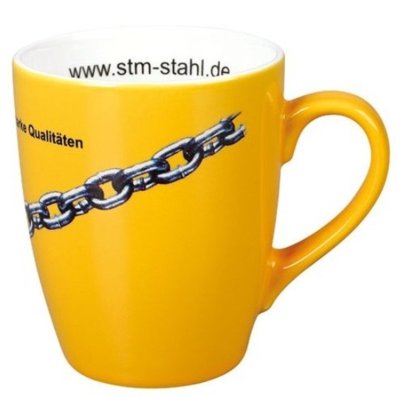

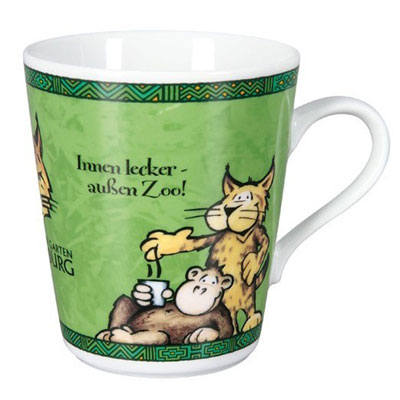

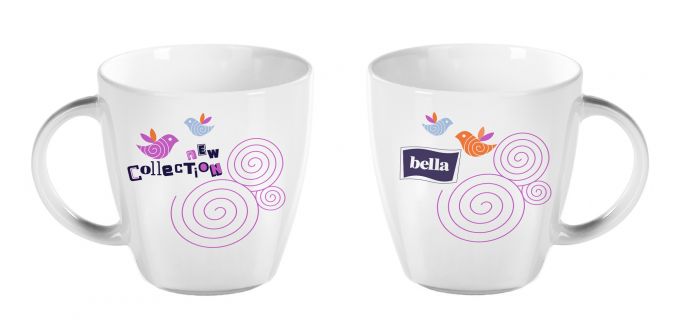

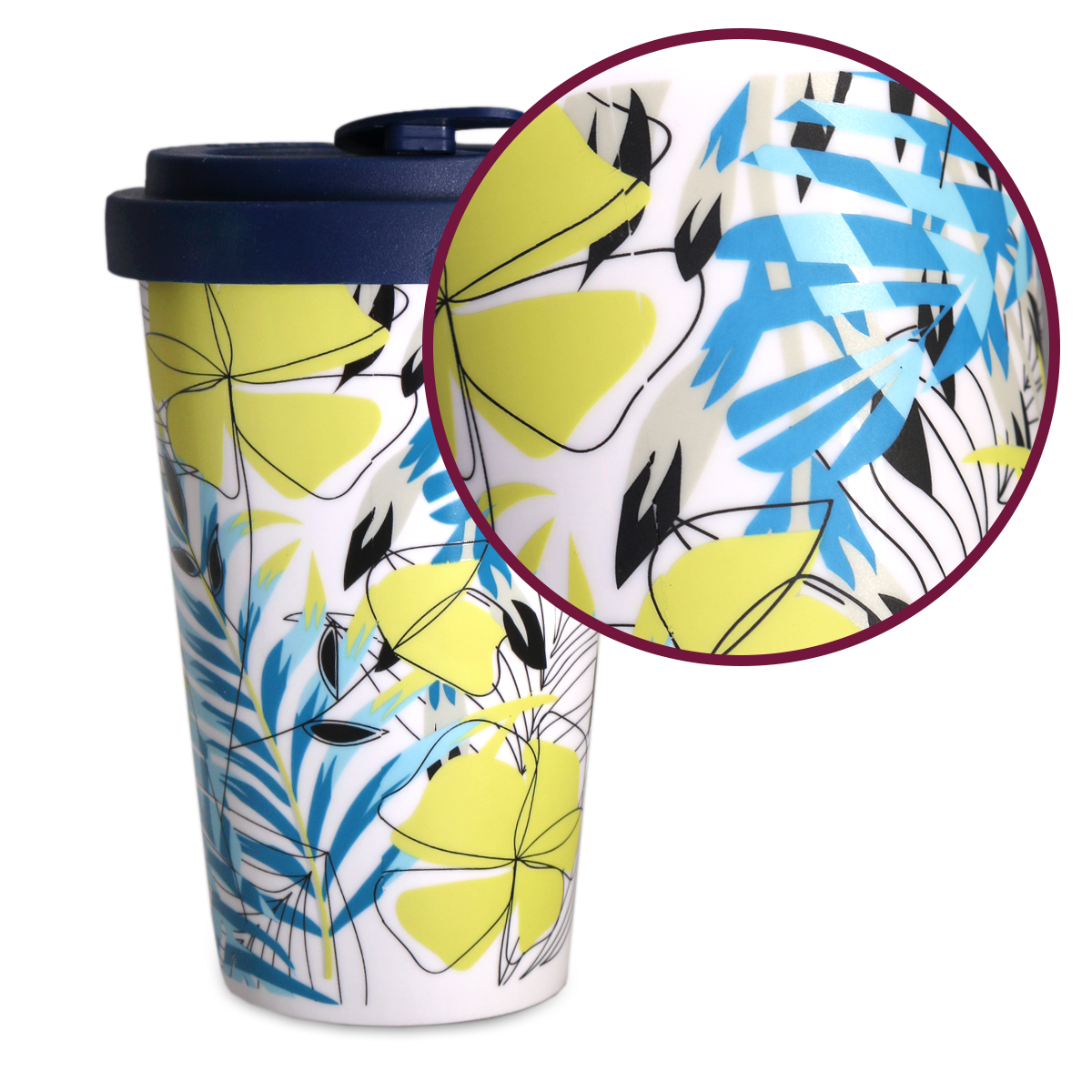

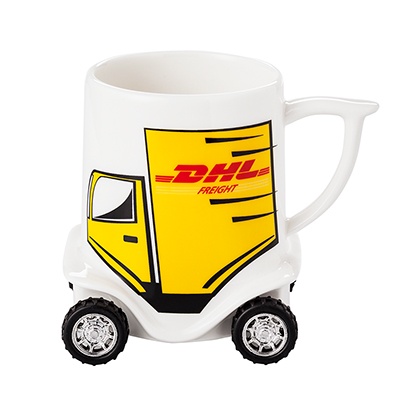

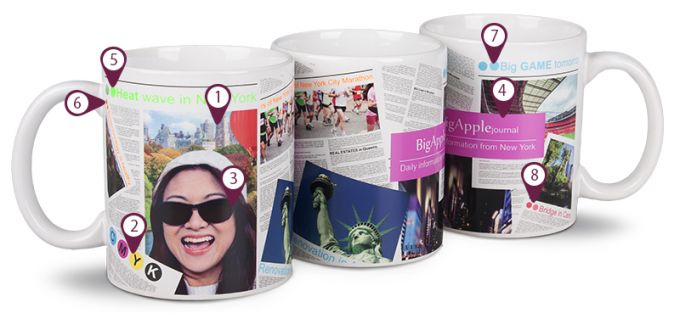

Transfer printing examples:

___ TRANSFER PRINT ON GLASS (high temperature transfer print)

TRANSFER PRINT - ON GLASS
Technological advantages	Technological limitations	Phases of the technological process
• extensive advertising surface • personalization capability • printed design durable against being washed out in dishwasher - the washing resistance is 250 cycles in a dishwasher. The paints used gradually lose their gloss, however, the print remains permanent, indelible and the printed colors do not discolour.	• minimal line thickness is 0,2 mm, in reverse - 0,4 mm • minimal size of writing is 7 pt., in reverse - 10 pt.	• pattern's preparation for printing • printing process on paper • transfer on product • firing product

___ ORGANIC TRANSFER PRINT - XPRESSION (low-temperature transfer print)

Organic transfer print technology (Xpression) enables to achieve high quality, vivid imprints in any Pantone color. From now on even colors such as pink, green, magenta and purple are achievable.

Refer Pantone Color Chart

Endless possibilities

Xpression technology is very versatile. It can be mixed with every other imprint technology. Organic transfer print is suitable for surfaces coated with Hydrocolor. Of course all of our inks are certificated and are safe to come in contact with food.

Xpression – imprints in any Pantone color
Technological advantages	Technological limitations	Phases of the technological process
Imprint retains its properties and colors for at least 300 wash cycles in dishwashers Pantone color matching, suitable for surfaces coated with Hydrocolor, orders starting from 24 pieces, low cost.	limited resistance to mechanical damage visible, transparent outline around imprint.	preparation for printing, printing process on paper, transfer on product, firing product (200 °C).

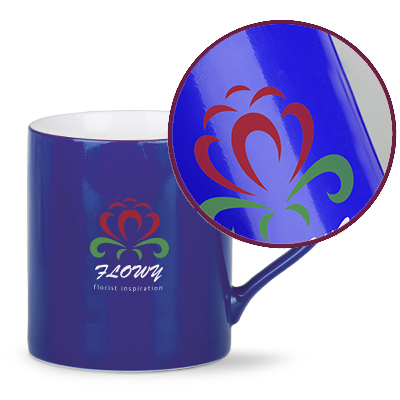

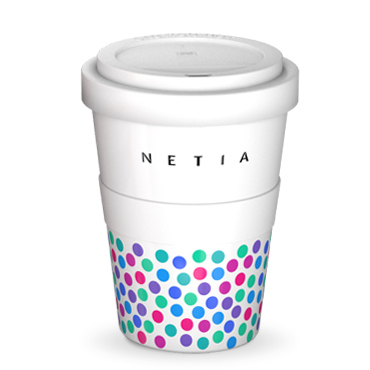

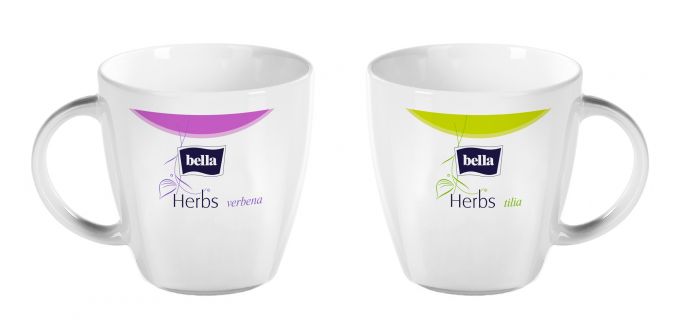

Examples of organic transfer print:


CMYK Print	Colors used for CMYK print	Intense colors of Xpression print

Comparison of colors achieved with CMYK (a) and Pantone (b) prints:


Green	Orange	Blue	Red

Xpression with HYDROCOLOR

Print examples:
